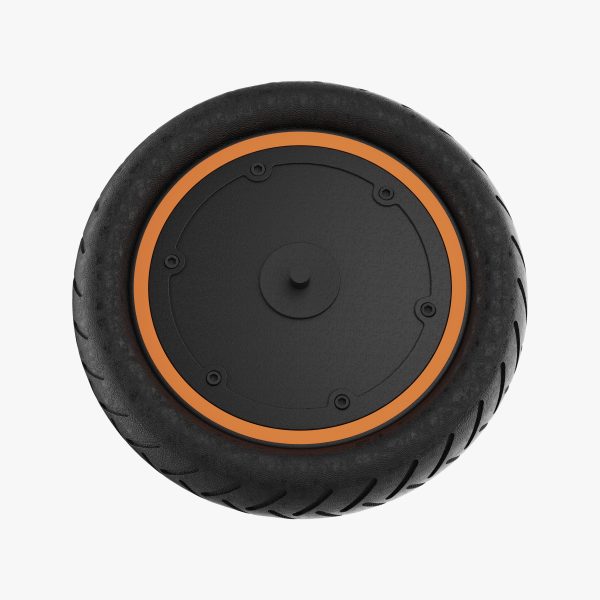

Motor (With Tyres) E1

8.5 inches, with inner and outer tubes, outer tube Wanda 8.5 pneumatic tire A5001 50/75-6.1, inner tube Wanda 8.5*2.0 thick straight air nozzle, motor phase line uses 1.5MM, length 700MM, phase line plug uses bullet head (solder at the connection), Hall line uses 5P, red, green, blue, yellow and black, plug uses HY5P2.0 buckle plug, magnetic cylinder 108 iron core, magnetic steel 30*16 350W 37V, frame opening 81.5MM, shaft length 120MM, tooth length at both ends 23*M12*1.5, flat width on both sides 23*10MM, flat width 10MM, flat washer 3MM, Q washer 3MM, flange nut, orange 165C outline (width 6MM) side cover all black, outlet end half open.
